RDJ-P unit creep monitoring device

1、 Overview

Rdj-p peristalsis monitoring system is composed of backup wheel operating mechanism and programmable device. The device uses Siemens PLC as the core controller and OMRON rotary encoder as the angle measuring element to monitor the creep condition of the unit when the water turbine unit is shut down.

2、 Technical parameters

Measurement range: 0 ° - 360 °

Measurement accuracy: 0.2 °

Digital display mode: digital display

Output signal: relay contact output, 2 groups

Contact capacity: 5A / AC220V, 2A / dc30v (resistive load)

Contact type: DPDT

Working environment: temperature 0-50 ° humidity < 95%

Overall dimension: disc mounting: width × high × Depth = 160 × eighty × three hundred and twenty

Power supply: AC220V

Power consumption: 40W

3、 Panel description

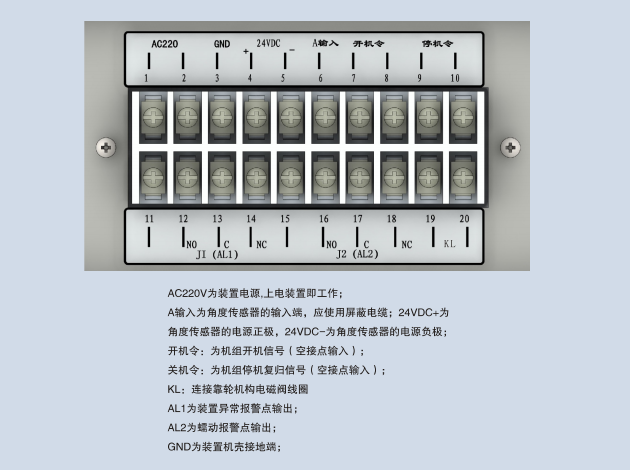

4、 Terminal block
