ZJS-4 four channel swing monitoring device

1、 Overview

Zjs-4 intelligent vibration swing monitor is a four channel intelligent digital instrument with single chip microcomputer as the core processor. The instrument is connected with the eddy current displacement sensor and can monitor the radial vibration of the main shaft of the water turbine generator set in X and Y directions on-line; Connected with low-frequency vibration sensor, it can monitor the vibration of vertical and horizontal channels online. Provide real-time vibration and swing monitoring signals for water turbine generator units

2、 Technical parameters

Number of measurement signal channels: four channels

Signal form: vibration sensor; Eddy current sensor;

Measurement range: 0 ~ 1.000mm (the swing is the symmetrical displacement in X or Y direction);

Measurement accuracy: ± 0.01mm;

Signal sensitivity: 5V / mm (or 2.5V / mm);

Frequency response: 0.5Hz ~ 250Hz;

Display mode: four channel 4-bit liquid crystal display;

Output voltage: DC12V;

Output analog signal: DC4 ~ 20mA (load resistance ≤ 525V);

Switching value output signal: 8 groups of SPST nodes (Level 2 alarm for each channel)

Contact capacity: AC220V / 0.5A dc220v / 0.15A

Power supply: AC / DC general AC85 ~ 265V dc110 ~ 340v

Power consumption: 8W

Operating environment: temperature: 0 ～ + 50 ℃; Relative humidity ≤ 85% RH

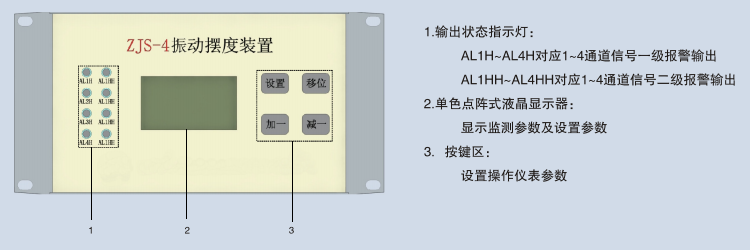

3、 Panel description

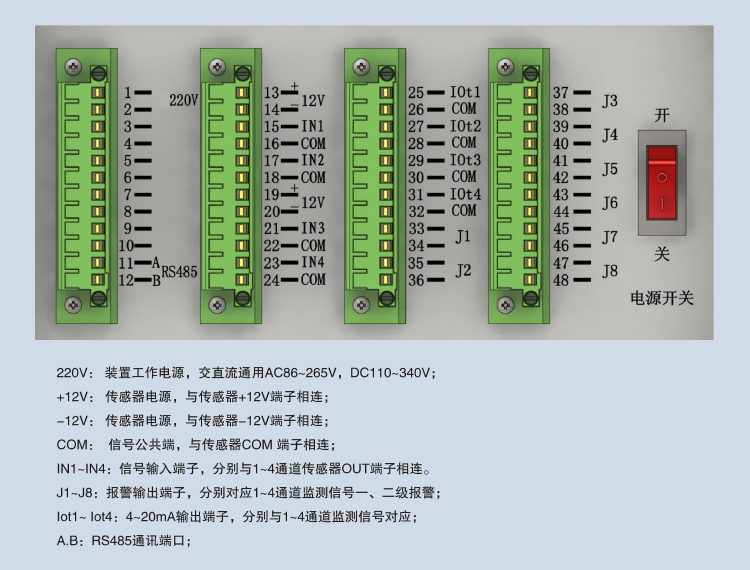

4、 Terminal block
